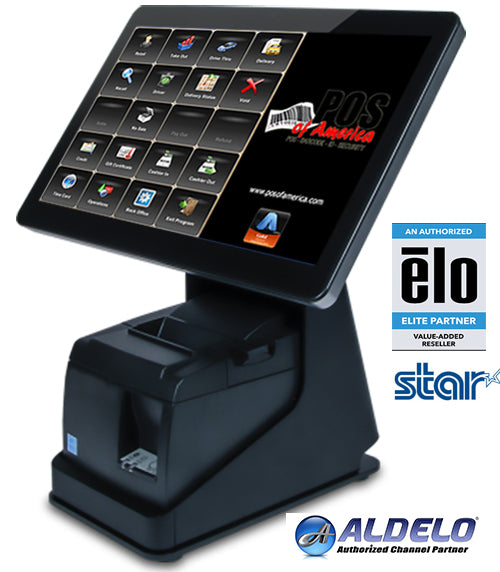

ELO I Series Tablet i5 4GB Win7 Star Printer Aldelo

ELO  I Series Tablet i5 4GB Win10 Star Printer with Aldelo

ELO PCAP i5 Win 10 (Worldwide) -

Star Micronics TSP143IIIBI Bluetooth 39472110

ELO mPOS Printer stand Black E353950

Aldelo POS Pro  Software

The multi-purpose fixed tablet form factor 15.6-inch I-Series for Windows interactive signage delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful Windows-based platform with a sleek, ultra-thin, yet durable fixed tablet form factor at only 1.5 inches thick. The I-Series is designed for easy in-field system upgrades and ease of serviceability bringing reliability and performance with the latest developments in touchscreen technology. The fully integrated I-Series is ideal for immersive interactive applications in all commercial markets including retail, hospitality, gaming, corporate and medical environments. And with flexible mounting options in portrait, landscape and tabletop orientation using Elo wall, floor and tabletop mounting accessories application use is endless.

The touchscreen computer offers the processing power needed for seamless engagement in any environment with the latest Intel processors. The 6th-generation Intel Skylake i5 with HD530 graphics for top-end performance or the fan-less Braswell Celeron are ideal for ultra-low noise environments. The I-Series for Windows can be pre-installed with Windows 10, Windows 8.1, or Windows 7, or with no OS.

The 15.6-inch I-Series delivers the quality and reliability Elo is known for, and is backed by our 3-year standard warranty, extendable to five years. Unlike tablets, the product is designed for long-term commercial use with no mechanical components (such as fans or spinning drives) and no battery. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro Projected Capacitive) - 10 Touch

Processor

ESYxxi5: Intel i5 2.3GHz (up to 3.3 GHz) 6500TE Quad-Core Processor; 6MB Smart Cache

Graphics

ESYxxi5: Intel HD Graphics 530

BIOS

AMI

Memory (RAM)

ESYxxi5: 4GB DDR4 SODIMM on 1 of 2 slot (Expandable to 16GB)
NOTE: Maximum memory using 2 available slots; Replaceable up to 16GB maximum, SODIMM DDR4-2133

Storage

128GB 2.5" 7mm SATA SSD

Diagonal Size

15.6' diagonal, Active matrix TFT LCD (LED)

On-Screen Display (OSD)

Power, Brightness Up, Brightness Down, Volume Up, Volume Down

Aspect Ratio

16:9

Active Area (mm)

13.6" x 7.6" / 344.2mm x 193.5mm

Resolution

Full HD 1920 x 1080 @ 60Hz

Number of Colors

262,000

Brightness (typical)

LCD Panel: 300 nits
PCAP: 270 nits

Response Time-total (typical)

25 msec

Contrast Ratio

700:1

Viewing Angle

Horizontal: ?85? or 170? total / Vertical: ?85? or 170? total

AV Capability

Front-facing HD webcam
Stereo speakers

USB Ports

ESYxxi5: 4 x USB 3.0, 3 x Micro USB for Elo peripherals

Ethernet Port

1 x LAN RJ45 (Gigabit)

Wireless

Wi-Fi 802.11 a/b/g/n/ac

Bluetooth

Bluetooth 4.0

Additional Video Out

2nd Micro HDMI out

Audio Ports

1 x 3.5mm line out

Speakers

Two 2W internal speakers

OS

Windows 7*
Windows 7 excluding POS 7 systems are preinstalled with Windows 7 and come with a license for Windows 10 at no additional charge. Subject to the licensing terms for the Windows software, you may temporarily use the loaded Windows version before upgrading.

Languages

Windows 7 - 35 Language groups

Power

Maximum output power: 65W (Max Draw: 74W)
Maximum output power: 90W (Max Draw: 100W)

Power Supply

External 19VDC universal-type power supply brick

Input Voltage

100 - 240 VAC 50/60Hz

Power Consumption (Typical)

i2: 33.97 W
i5: 80.63 W

Dimensions

15.2" x 9.8" x 1.5" / 387mm x 249mm x 39mm

Shipping Box Dimensions

19.29" x 14.96" x 5.51" / 490mm x 380mm x 140mm

Weight (Unpackaged)

5.64 lbs / 2.56 kg

Weight (Packaged)

9.71 lbs / 4.41 kg

Operating Temperature

0?C to 35?C / 32?F to 95?F

Storage Temperature

-20?C to 60?C / -4?F to 140?F

Humidity

Operating: 20% to 80%
Storage: 5% to 95%

Regulatory approvals and declarations

UL/cUL, FCC, TUV, CB, CE, VCCI

Real-Time Clock

Replaceable lithium-ion battery for clock

MTBF

50,000 hours demonstrated

Mounting Options

Wall/pole mount or secure base to tabletop/desktop

Warranty

3-year

Sealability

Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD

Power Cables

Power Cables: North American and European power cables included; Other regions available upon request

What's in the Box

Windows I-Series Touchcomputer
1 x US Power Cable
1 x European Power Cable
1 x Power Adapter
1 x Quick Install Guide
